Issue with UTF-8 in from.name in HTTP API injection

fhf · March 8, 2025, 11:23am

It seems like some UTF-8 strings are not handled correctly in from.name when injected using the HTTP API. For example with this payload:

{
  "envelope_sender": "no-reply@email.ahasend.com",
  "content": {
    "text_body": "test",
    "html_body": "test",
    "subject": "sample subject",
    "from": {
      "email": "noreply@email.ahasend.com",
      "name": "وجیهه تست برای نام"
    }
  },
  "recipients": [
    {
      "email": "hf.farhad@gmail.com",
      "name": "hf.farhad@gmail.com"
    }
  ]
}

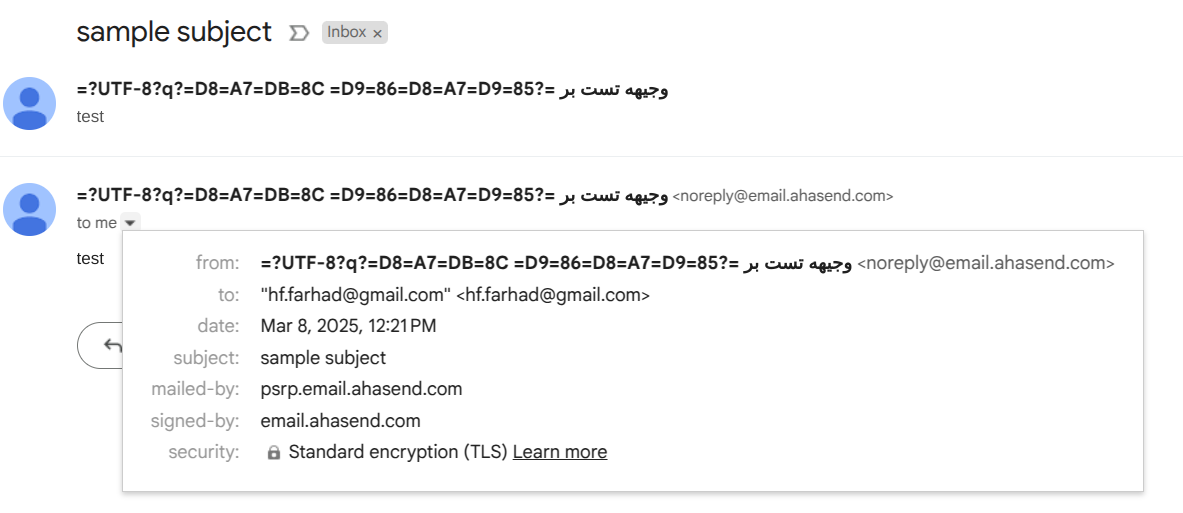

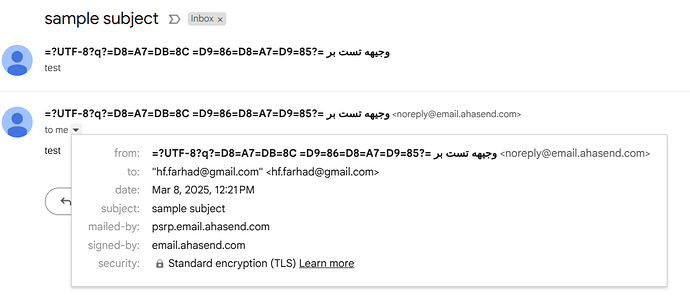

The ~~subject~~ from name is shown as

وجیهه تست بر =?UTF-8?q?=D8=A7=DB=8C =D9=86=D8=A7=D9=85?=

in Gmail.

fhf · March 8, 2025, 11:23am

It seems like attachments are turned off here? wanted to attach a screenshot.

fhf · March 8, 2025, 11:42am

Sorry, by subject I meant from.name

fhf · March 8, 2025, 11:43am

Issue with UTF-8 in from.name in HTTP API injection

Mike · March 8, 2025, 3:51pm

I fixed permissions, try screenshot again?

fhf · March 8, 2025, 7:09pm

Thanks!

tom · March 11, 2025, 7:33pm

I guess “don’t do that” is not an option?
What version are you running? Some UTF handling changes were made recently.

fhf · March 12, 2025, 9:43am

That’s what I’ve asked them to do for now, just wanted to let you guys know about the issue. It’s on kumod 2025.01.29-833f82a8

tom · March 12, 2025, 3:33pm

OK great - thank you

tom · March 12, 2025, 4:56pm

We are looking into it, but do not have any kind of ETA. In the mean time, please use SMTP injection.

wez · March 12, 2025, 8:11pm

We encode the From header like this for that payload:

From: =?UTF-8?q?=D9=88=D8=AC=DB=8C=D9=87=D9=87_=D8=AA=D8=B3=D8=AA_=D8=A8=D8=B1?=
        =?UTF-8?q?=D8=A7=DB=8C_=D9=86=D8=A7=D9=85?= <noreply@email.ahasend.com>

and that is conforming to the specs.

In addition, I tried composing in gmail to a crazy version of my own address, and the To header that it produces has the same kind of structure wrt. word wrapping:

To: =?UTF-8?Q?a_very_long_long_long_long_long_long_long_long_long_long_?=
    =?UTF-8?Q?a_very_long_long_long_long_long_long_long_long_long_long_a_v?=
    =?UTF-8?Q?ery_long_long_long_long_long_long_long_long_long_long_a_very?=
    =?UTF-8?Q?_long_long_long_long_long_long_long_long_long_long_a_very_lo?=
    =?UTF-8?Q?ng_long_long_long_long_long_long_long_long_long_a_very_long_?=
    =?UTF-8?Q?ng_=DB=8C=D9=87=D9=87?= <wez@wezfurlong.org>

I don’t want to say that gmail has a bug here, just that, if we have a bug in our encoding of that field, it’s not clear what it is.

I will note that when I composed a mail from gmail using exactly your input, gmail chose to base64 it:

To: =?UTF-8?B?2YjYrNuM2YfZhyDYqtiz2Kog2KjYsdin24wg2YbYp9mF?= <wez@wezfurlong.org>

You can pre-rfc2047-header-encode the from.name if you want, and we’ll pass that through.

I’m hesitant to want to try to change anything here right now because it’s really not clear what the bug is.

fhf · March 15, 2025, 12:46pm

I just had some time to do some more testing, and found another problematic subject انتشارات جمال.

Also, this issue is not limited to gmail, it’s happening on outlook as well.

Sending the same message through the API results in this from.name value (taken from test-SMTP.eml attached belowo):

From: =?UTF-8?q?=D8=A7=D9=86=D8=AA=D8=B4=D8=A7=D8=B1=D8=A7=D8=AA_=D8=AC=D9=85?=
    =?UTF-8?q?=D8=A7=D9=84?= <no-reply@email.ahasend.com>

with the API, the generated From header is (taken from test-API.eml):

From: =?UTF-8?q?=D8=A7=D9=86=D8=AA=D8=B4=D8=A7=D8=B1=D8=A7=D8=AA_=D8=AC=D9=85_?=
    =?UTF-8?q?=3D=3FUTF-8=3Fq=3F=3DD8=3DA7=3DD9=3D84=3F=3D?= <noreply@email.ahasend.com>

The API version has a small difference at the end of the first line (85?= in SMTP vs 85_?= in API)

The SMTP message was constructed and sent using PHPMailer.
test-API.eml (5.4 KB)
test-SMTP.eml (5.85 KB)

fhf · March 15, 2025, 12:47pm

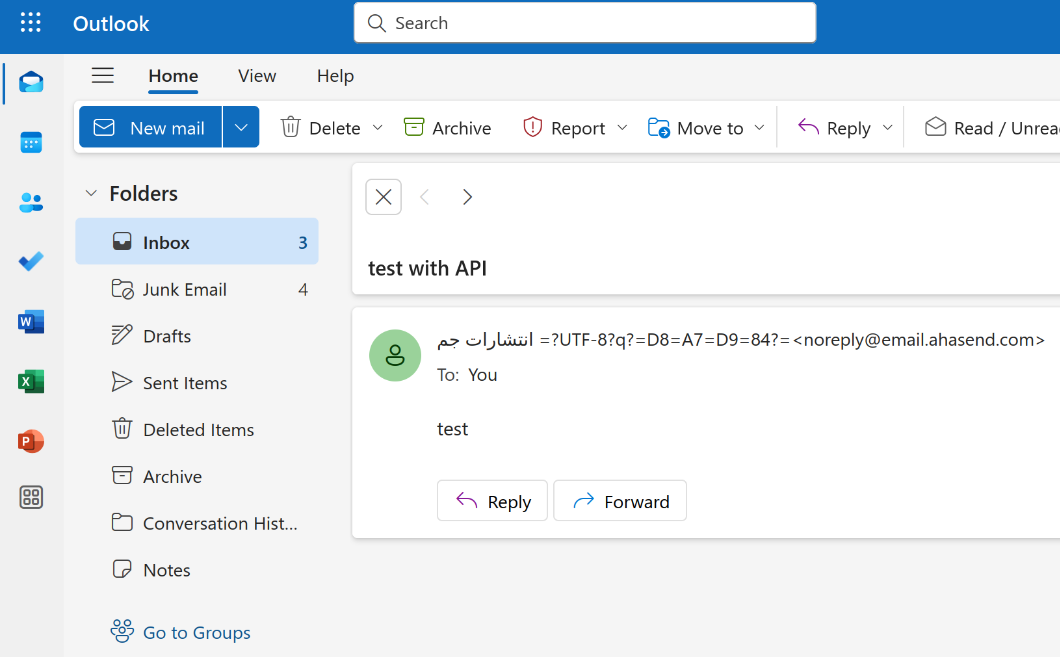

Same issue on outlook.

wez · March 15, 2025, 2:29pm

=?UTF-8?q?=3D=3FUTF-8=3Fq=3F=3DD this part from test-API looks like it is embedding some qp encoded value of its own in there; looks like something has been double encoded. What was the input payload there? Is there some additional logic in your policy that might be modifying the content after it has been generated?

fhf · March 15, 2025, 3:39pm

Just double checked, other than adding / removing some headers and meta using set_meta, append_header, and remove_all_named_headers we’re making no changes to the message in http_message_generated .

This is the payload:

{
  "envelope_sender": "no-reply@email.ahasend.com",
  "content": {
    "text_body": "test",
    "html_body": "test",
    "subject": "test with API",
    "from": {
      "email": "noreply@email.ahasend.com",
      "name": "انتشارات جمال"
    }
  },
  "recipients": [
    {
      "email": "hf.farhad@gmail.com",
      "name": "hf.farhad@gmail.com"
    }
  ]
}

fhf · March 15, 2025, 3:48pm

My http_message_generated code: http_message_generated.lua · GitHub

wez · March 15, 2025, 4:23pm

the check_fix_conformance call is what is changing that header value

wez · March 15, 2025, 4:23pm

local kumo = require 'kumo'

local request = kumo.serde.json_parse [[
{
  "envelope_sender": "no-reply@email.ahasend.com",
  "content": {
    "text_body": "test",
    "html_body": "test",
    "subject": "test with API",
    "from": {
      "email": "noreply@email.ahasend.com",
      "name": "انتشارات جمال"
    }
  },
  "recipients": [
    {
      "email": "hf.farhad@gmail.com",
      "name": "hf.farhad@gmail.com"
    }
  ]
}
]]

for _, msg in ipairs(kumo.api.inject.build_v1(request)) do
  print(msg:get_data())

  msg:check_fix_conformance(
    -- check for and reject messages with these issues:
    'NON_CANONICAL_LINE_ENDINGS',
    -- fix messages with these issues:
    'NEEDS_TRANSFER_ENCODING|MISSING_DATE_HEADER|MISSING_MESSAGE_ID_HEADER|LINE_TOO_LONG'
  )

  print('after fix')
  print(msg:get_data())
end

wez · March 15, 2025, 4:23pm

$ kumod --script --policy ./builder.lua
Content-Type: multipart/alternative;
        boundary="0opD4Ub9RUih8hYuaRHXTQ"
To: "hf.farhad@gmail.com" <hf.farhad@gmail.com>
From: =?UTF-8?q?=D8=A7=D9=86=D8=AA=D8=B4=D8=A7=D8=B1=D8=A7=D8=AA_=D8=AC=D9=85?=
        =?UTF-8?q?=D8=A7=D9=84?= <noreply@email.ahasend.com>
Subject: test with API
Mime-Version: 1.0
Date: Sat, 15 Mar 2025 16:22:53 +0000

--0opD4Ub9RUih8hYuaRHXTQ
Content-Type: text/plain;
        charset="us-ascii"

test
--0opD4Ub9RUih8hYuaRHXTQ
Content-Type: text/html;
        charset="us-ascii"

test
--0opD4Ub9RUih8hYuaRHXTQ--

after fix
Content-Type: multipart/alternative;
        boundary="0opD4Ub9RUih8hYuaRHXTQ"
To: "hf.farhad@gmail.com" <hf.farhad@gmail.com>
From: =?UTF-8?q?=D8=A7=D9=86=D8=AA=D8=B4=D8=A7=D8=B1=D8=A7=D8=AA_=D8=AC=D9=85_?=
        =?UTF-8?q?=3D=3FUTF-8=3Fq=3F=3DD8=3DA7=3DD9=3D84=3F=3D?= <noreply@email.ahasend.com>
Subject: test with API
Mime-Version: 1.0
Date: Sat, 15 Mar 2025 16:22:53 +0000
Message-ID: <bf2ab3ed01b911f09266cc28aa0a5c5a@email.ahasend.com>

--0opD4Ub9RUih8hYuaRHXTQ
Content-Type: text/plain;
        charset="us-ascii"

test
--0opD4Ub9RUih8hYuaRHXTQ
Content-Type: text/html;
        charset="us-ascii"

test
--0opD4Ub9RUih8hYuaRHXTQ--

wez · March 15, 2025, 4:24pm

So that gives me something to dig into!
